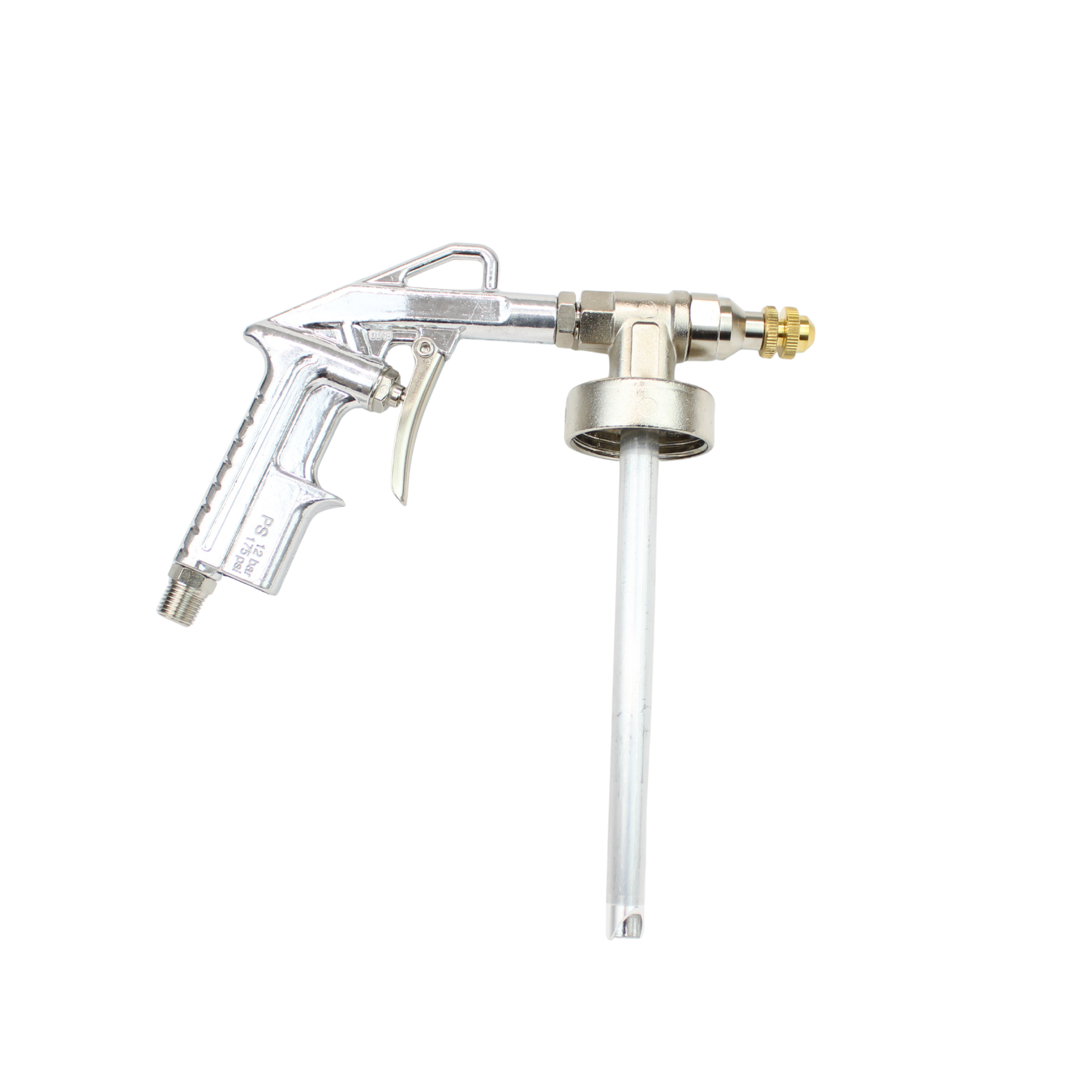

Paint/Undercoating Applicator Gun

$120.00 $64.00

Shipping calculated at checkout.

Free Continental USA shipping

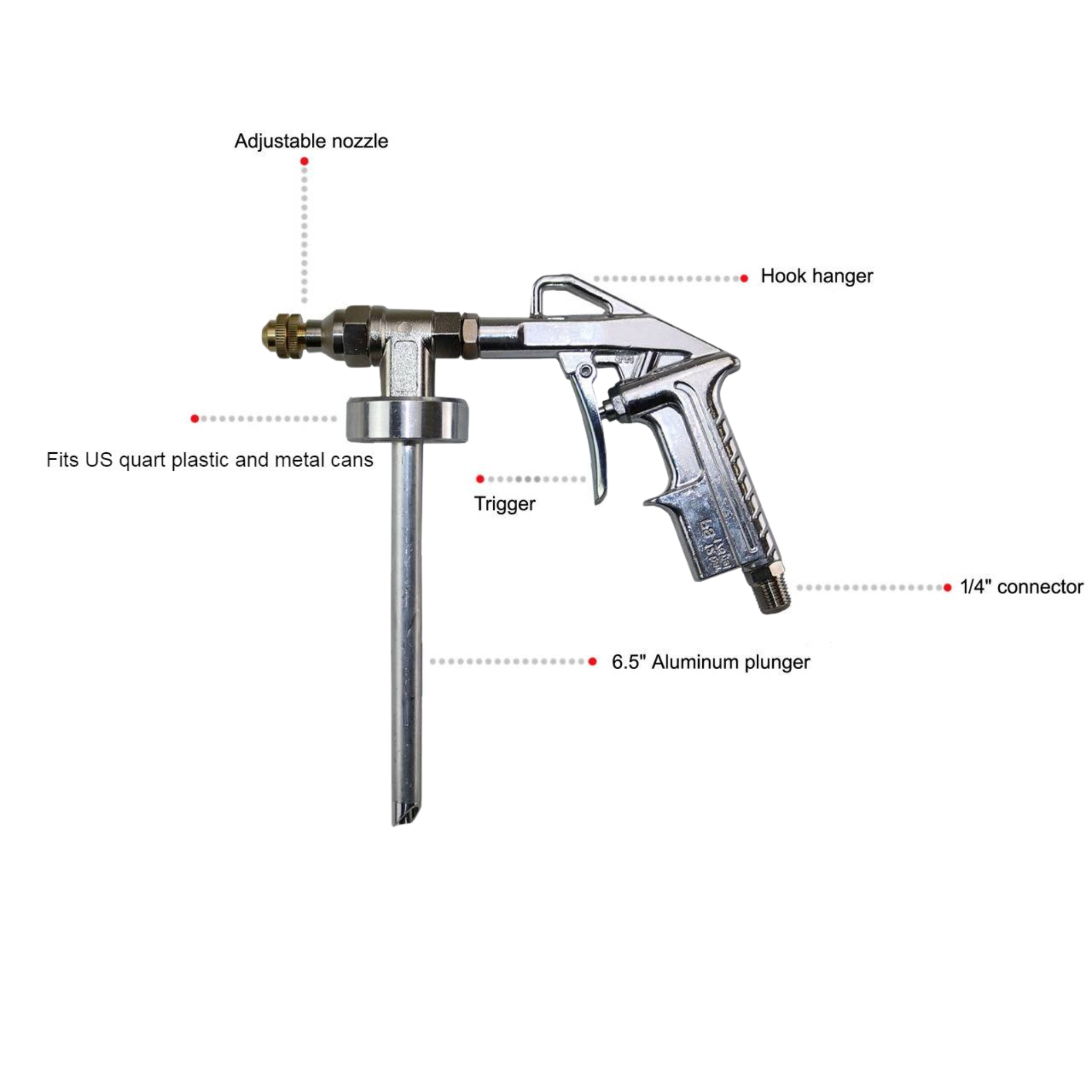

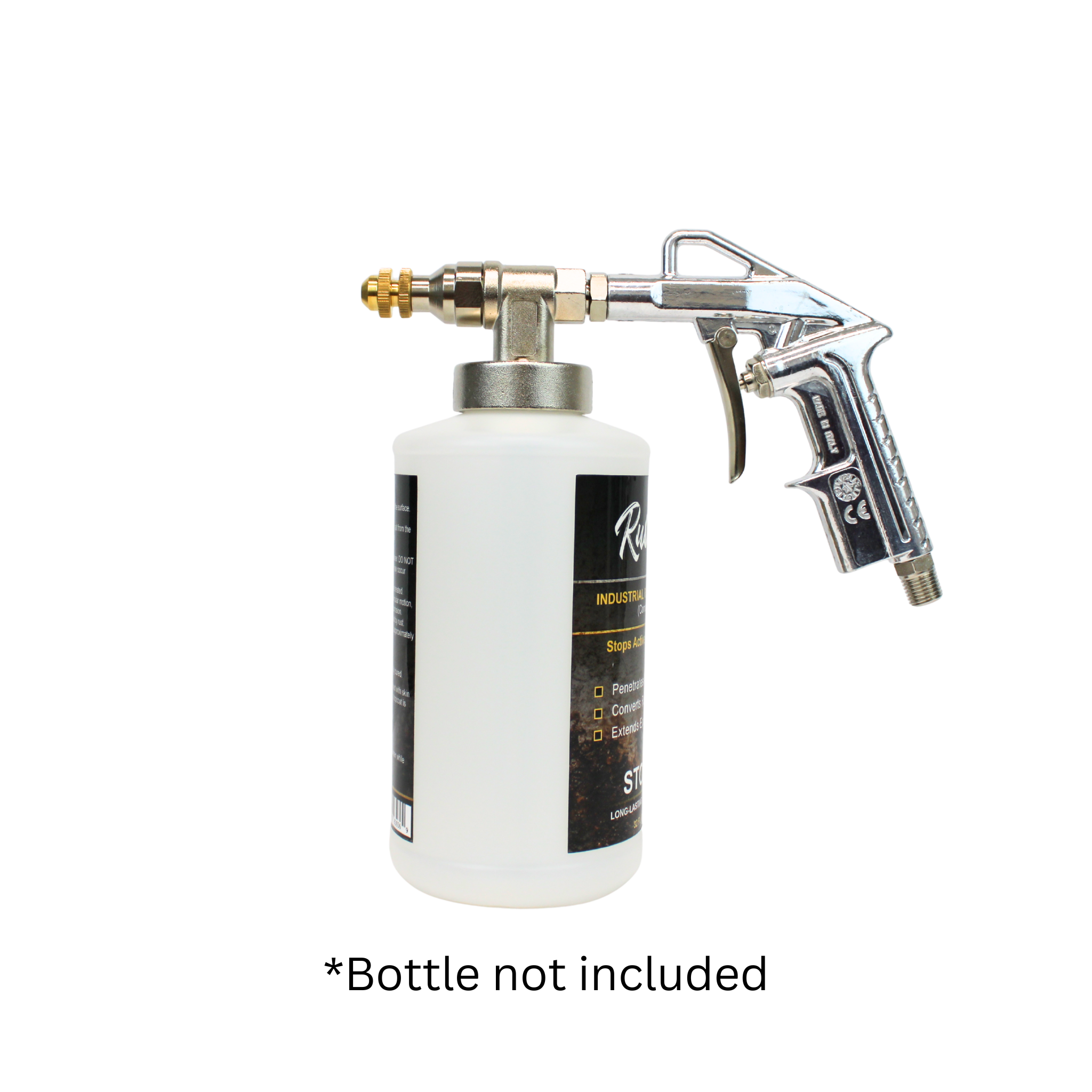

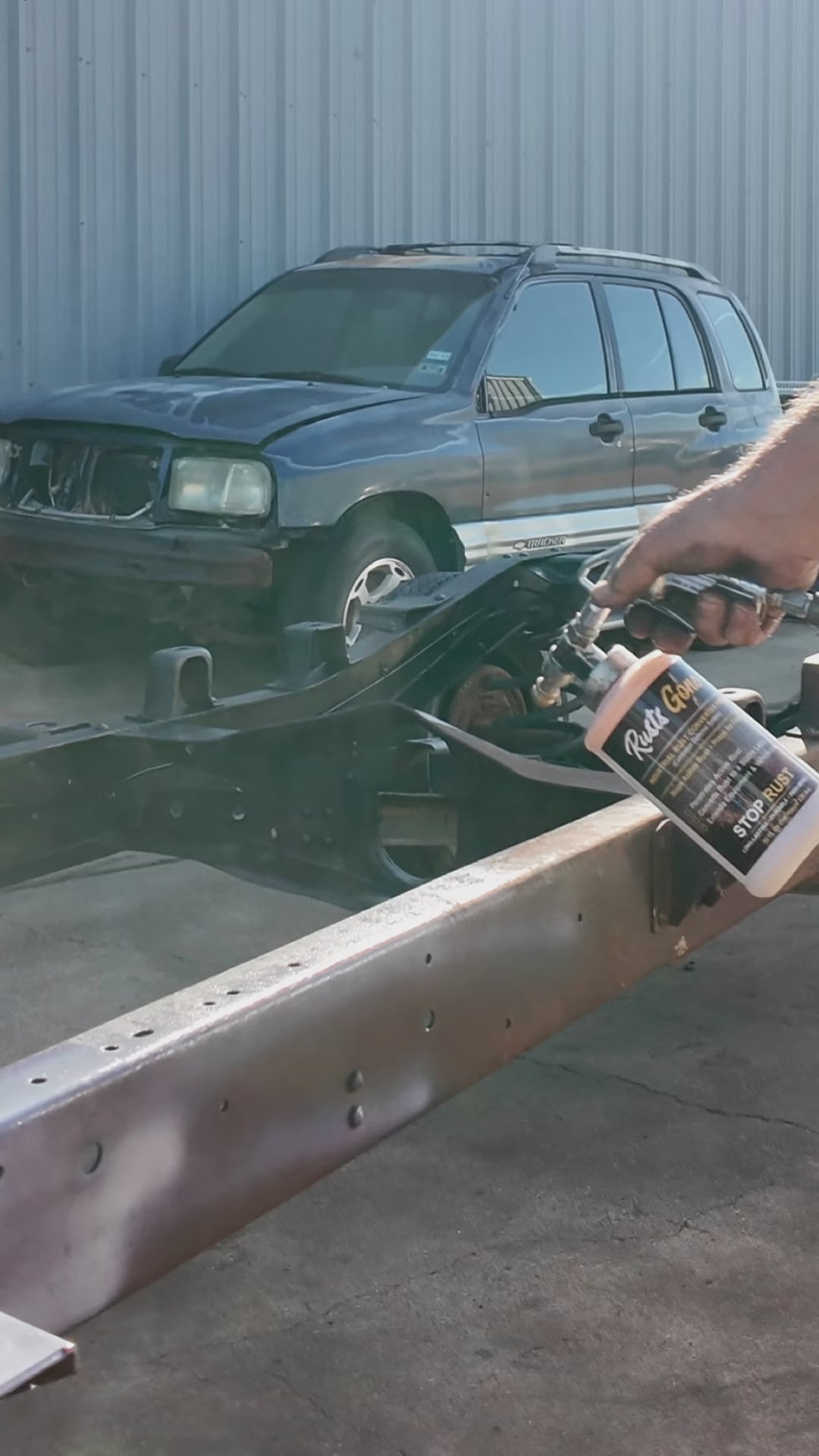

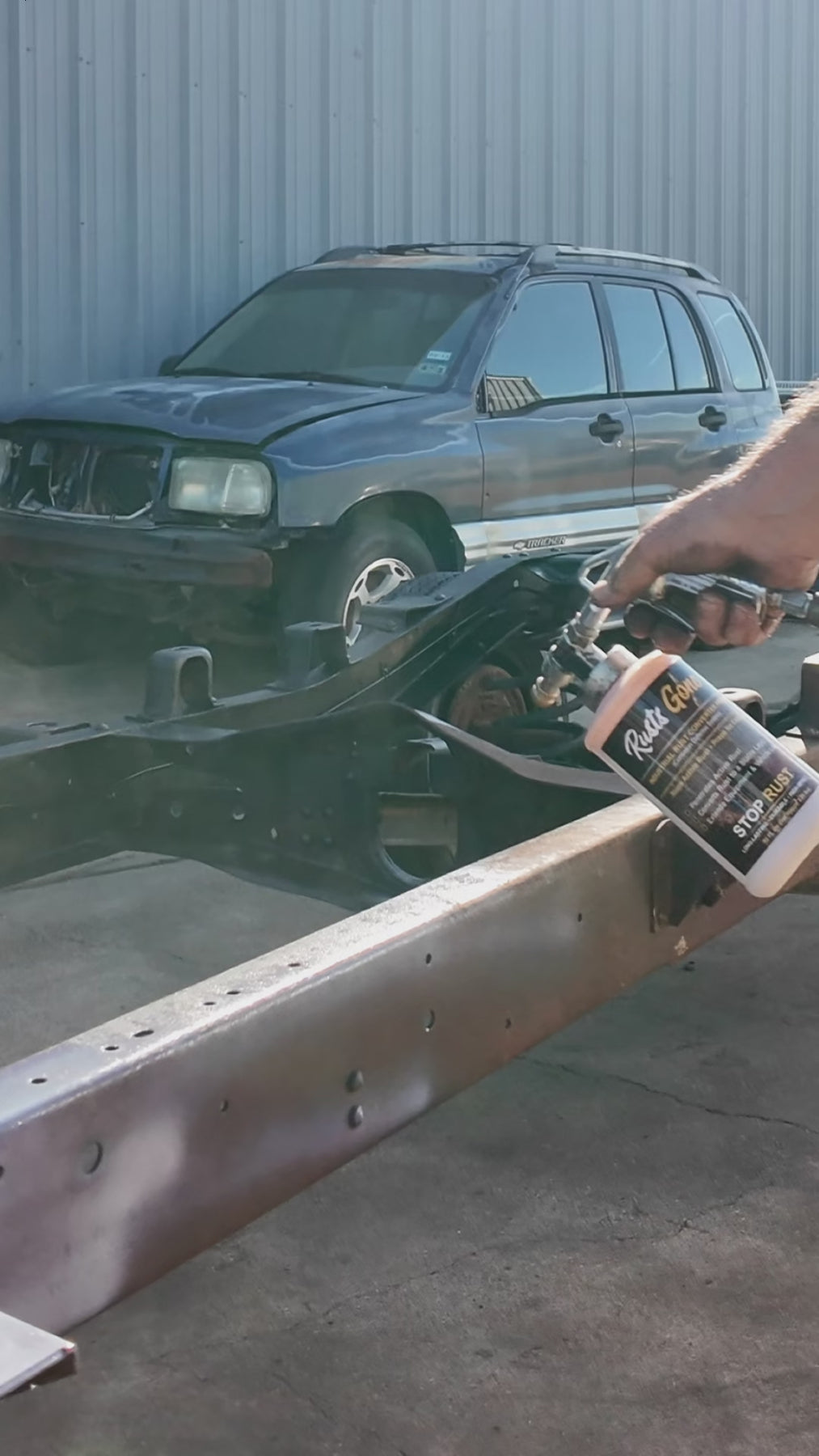

Undercoating spray gun designed for spraying undercoating, thick paints, and rustproofing coatings to cars and trucks. This gun has a threaded collar which allows for direct attachment to standard metal/plastic US quart cans with 1.75 inch neck opening, and it is equipped with an adjustable nozzle allowing the user to control the product flow and to spray different textures. The optional plastic wands can be used for spraying wax- based rust proofing in cavities, hollow beams, doors etc.

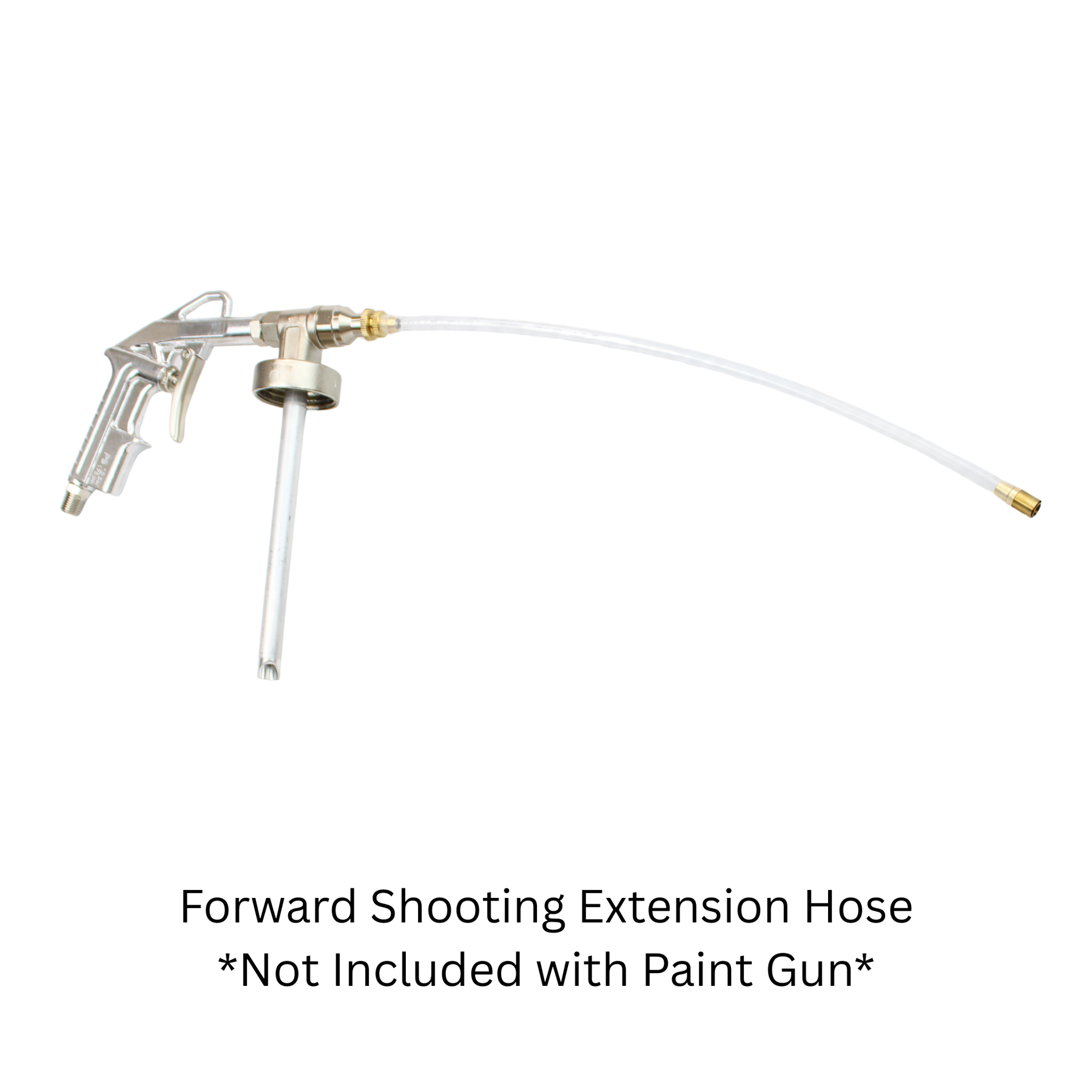

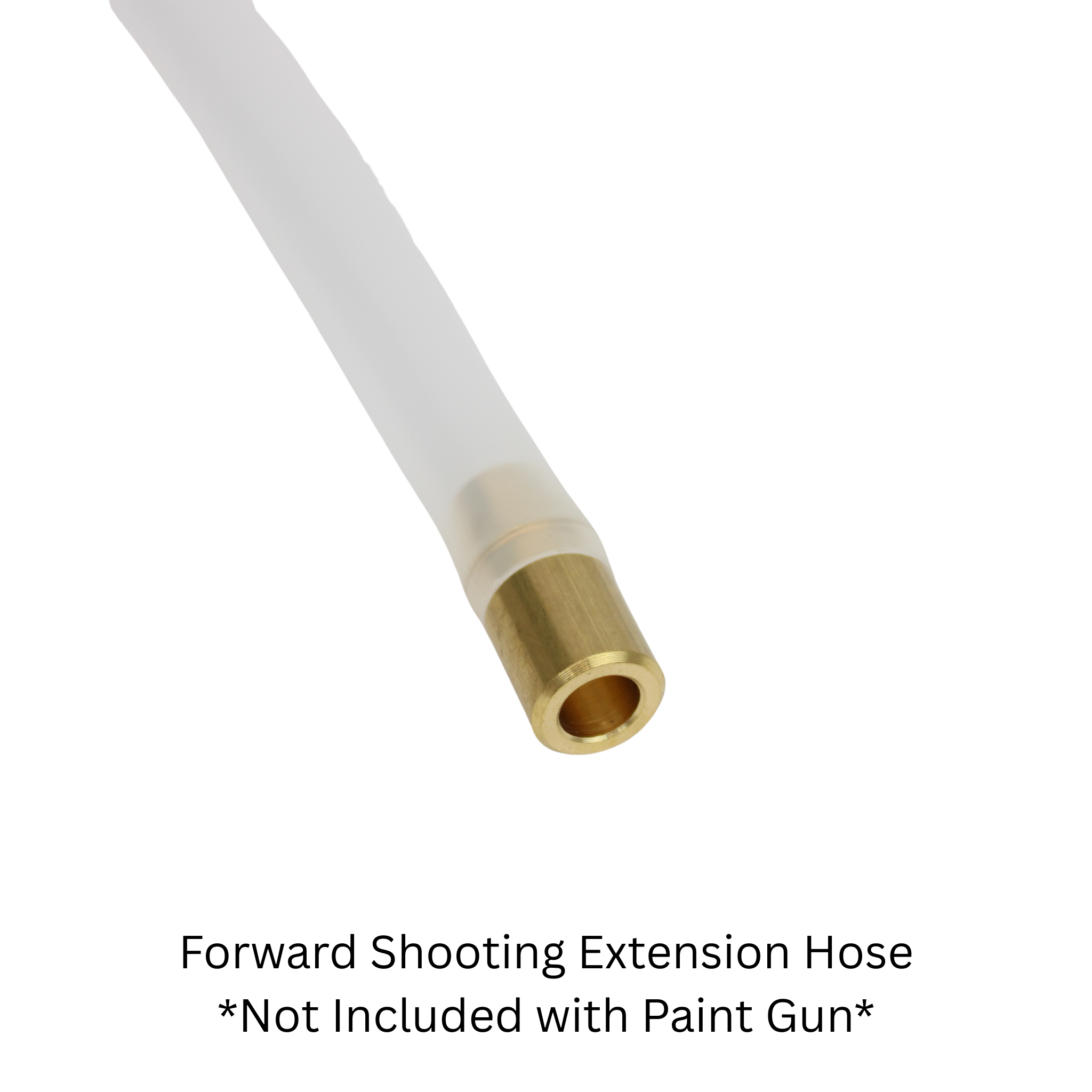

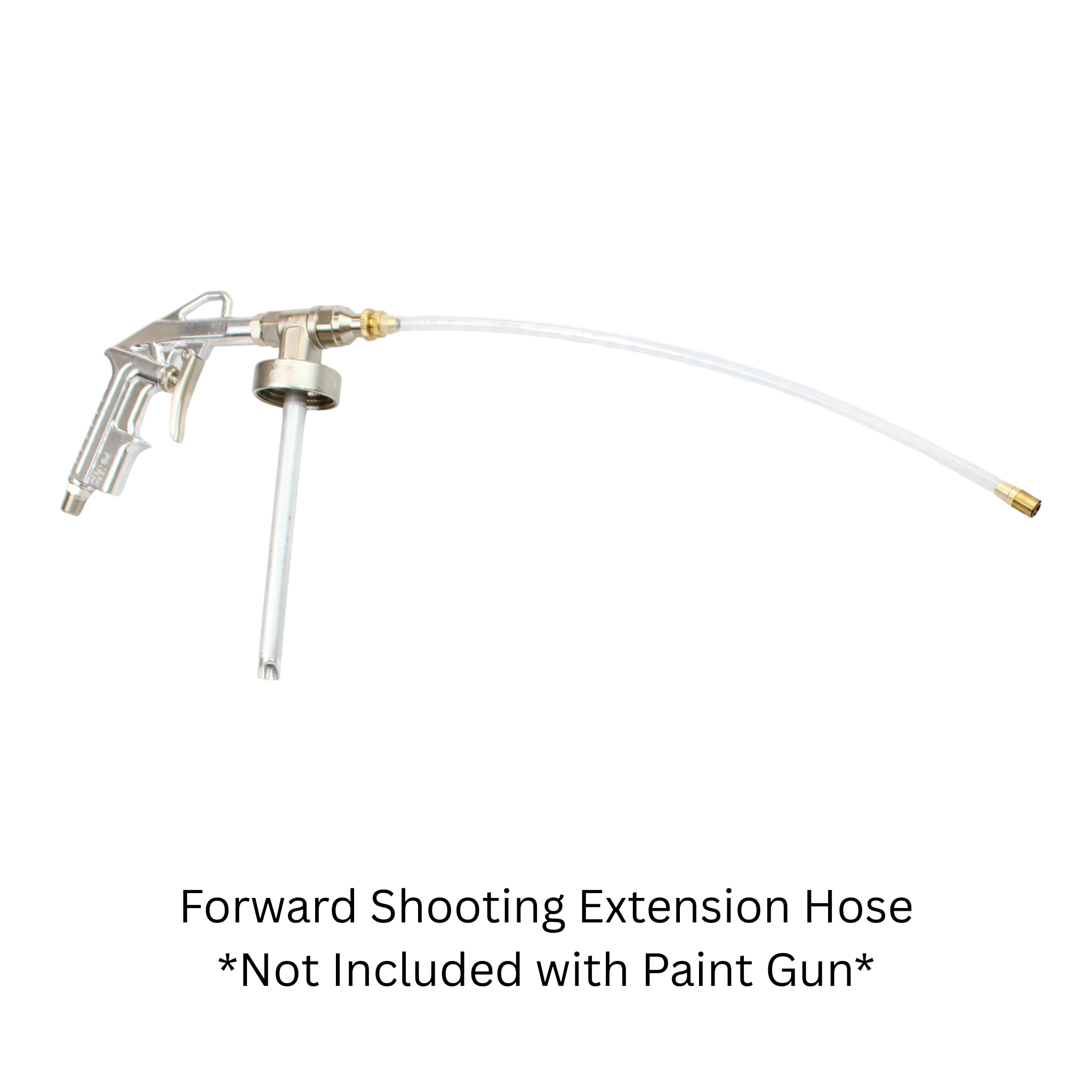

Forward Shooting Extension Hose (RA1 UCW) may be helpful in the application of undercoating in hard to reach places, i.e. behind mufflers and around exhaust pipes.
15 inches long, 10 MM (3/8″) OD, 5 MM (3/16″) ID, M11x0.75 thread.

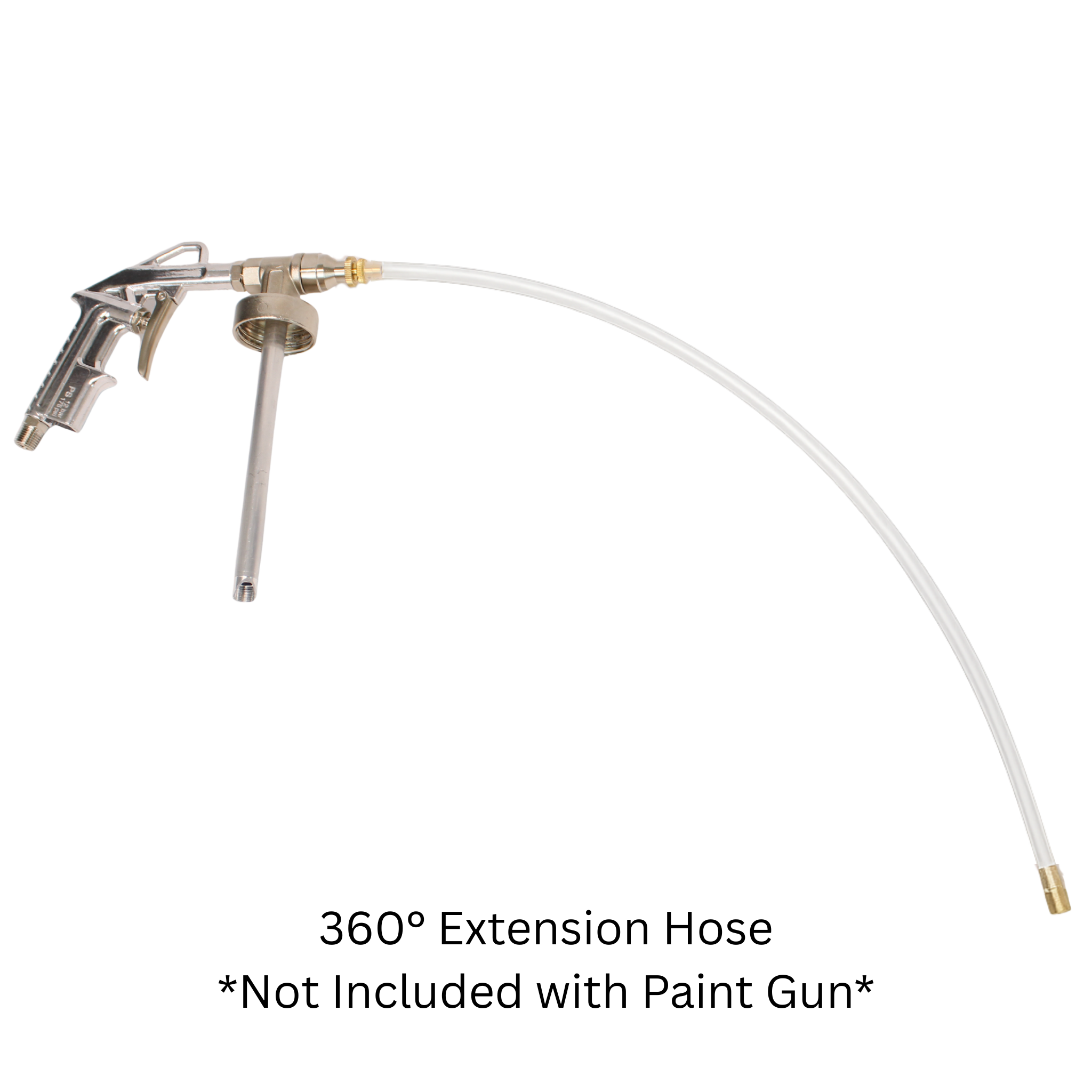

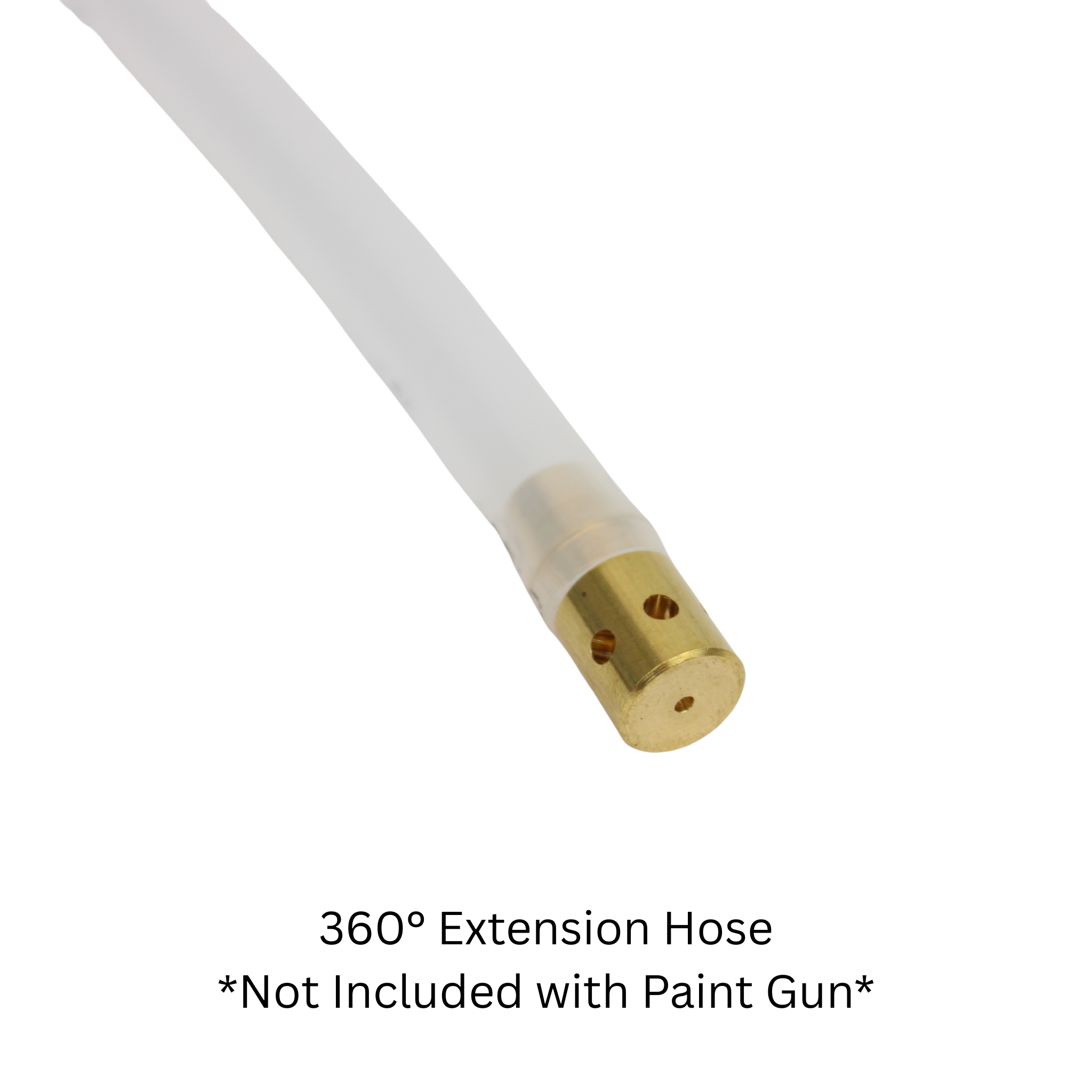

360° Extension Hose (item RA1 RPW) will atomize the rustproofing in hollow beams, cavities and inside doors.
22 inches long, 10 MM (3/8″) OD, 5 MM (3/16″) ID, M11x0.75 thread.

Working pressure: 40-60 psi (max 140 psi)
Approximate air consumption: 5-8 CFM
Aluminum body
1/4" NPT air connector
Net weight: 14oz
Noise level <80dba

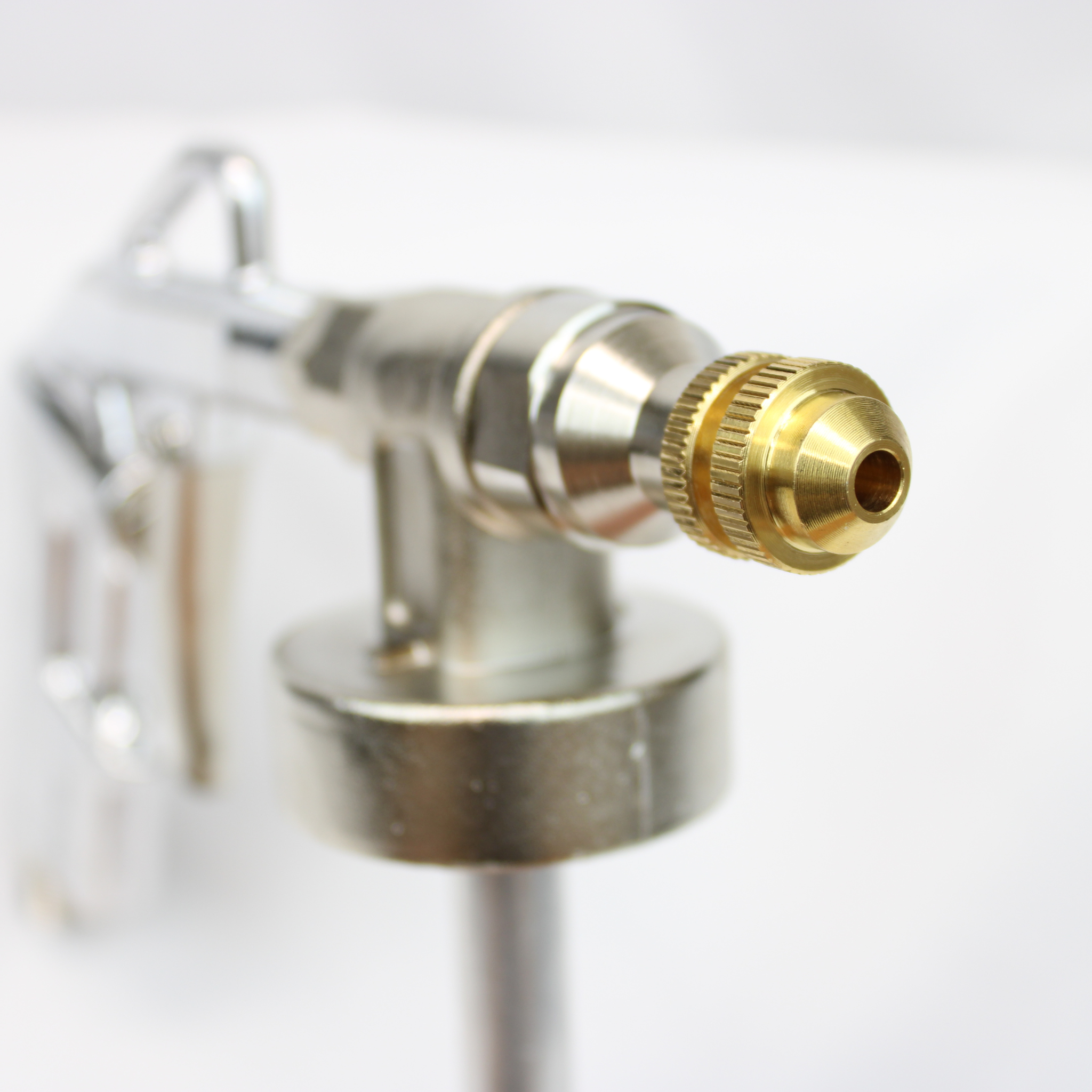

Adjustable nozzle sprays different textures
Aluminum plunger 6.5” long
Made in Italy
